We made a sample of the head width face ( chin) implant. Because the equipment currently operates cobalt chromium,
It is made of cobalt chromium. The actual production should be made of titanium.
- Process setting value.
Material: Cobalt Chrome Co-Cr (powder size 15–45 microns)
Additive thickness: 0.32 um
Laser speed: 800 m/s
Laser Capacity: 230w
Stack time: 9 hours.
This is a picture after printing and before taking it out of the build.
This is a picture of removing powder and sanding.

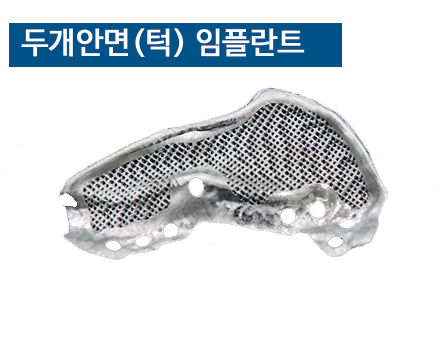

The bottom is the result. Front, back.
In general, the lattice structure has been well implemented.
